高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
來源：http://www.dbaub.cn 作者：康華爾電子 2023年06月27
Connor-Winfield’s New IEEE 1588 OCXO Provides Excellent Frequency Stabilities and Aging

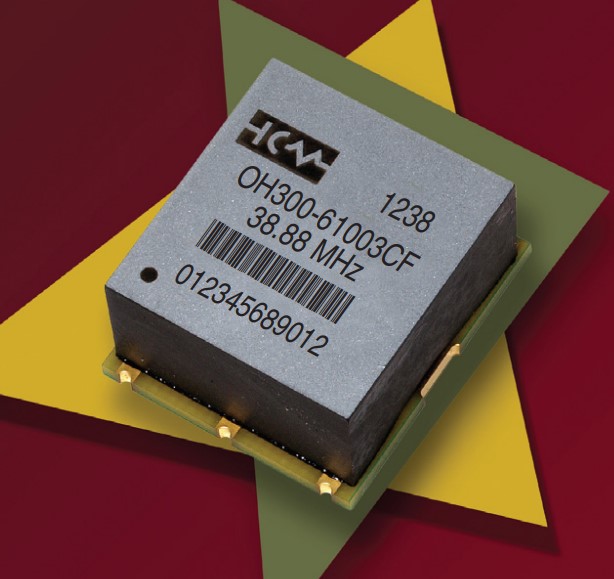

Aurora, IL — Connor-Winfield’s new high stability SMD OH300 series of OCXO恒溫晶振 provide an excellent capability to support IEEE 1588 system requirements. This SC crystal based design maximizes short term stability, frequency stability over temperature and extremely low aging rates. Offering standard frequencies like 5M, 10M, 12.8M, 13M, 19.44M, 20M and 20.48M, this model can be configured to provide exceptional performance for short term stability to the level 5x10 -12, stability over temperature of 1x10-9 and daily aging rates of 5x10- 10. Package size is 22x25x12.7mm.
The OH300 series is available with LVCMOS, HCMOS or Sine output along with electronic frequency tuning. Power requirements are 3W over the commercial temperature range and 4.5W over the industrial temperature range. The high stability OH300 series oscillators are exceptionally precise frequency standards, excellent for use in IEEE 1588 systems, Synch E, cellular base stations, Stratum 3E, VSAT and test equipment applications.
Aurora, IL — Connor-Winfield’s new high stability SMD OH300 series of OCXO恒溫晶振 provide an excellent capability to support IEEE 1588 system requirements. This SC crystal based design maximizes short term stability, frequency stability over temperature and extremely low aging rates. Offering standard frequencies like 5M, 10M, 12.8M, 13M, 19.44M, 20M and 20.48M, this model can be configured to provide exceptional performance for short term stability to the level 5x10 -12, stability over temperature of 1x10-9 and daily aging rates of 5x10- 10. Package size is 22x25x12.7mm.
The OH300 series is available with LVCMOS, HCMOS or Sine output along with electronic frequency tuning. Power requirements are 3W over the commercial temperature range and 4.5W over the industrial temperature range. The high stability OH300 series oscillators are exceptionally precise frequency standards, excellent for use in IEEE 1588 systems, Synch E, cellular base stations, Stratum 3E, VSAT and test equipment applications.
高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
Features and Configurations
Features and Configurations
• Frequency Range: 5 to 40MHz
• OCXO Fixed Frequency
• OCVCXO Voltage Controlled Frequency石英晶體振蕩器
• 3.3VDC to 5.0VDC Operation
• Available Frequency Stabilities：±10ppb，±20ppb，±50ppb
• Available Temperature Ranges: 0℃ to 70℃，-20℃ to 70℃，-20℃to 75℃，-40℃ to 70℃，-40℃ to 85℃，
• Low Phase Noise/Phase Jitter
• Low Phase Noise/Phase Jitter
• CMOS Output Logic or Pure Sine
• SMT Package: 22x25x12.7mm
• RoHS Compliant/Lead Free
Connor-Winfield的新IEEE 1588 OCXO提供了出色的頻率穩定性和老化
Connor-Winfield的新型高穩定性SMD OH300系列OCXO晶振提供了支持IEEE 1588系統要求的出色能力。這種基于SC晶體的設計使短期穩定性最大化， 溫度范圍內的頻率穩定性和極低的老化率。提供標準頻率，比如5M， 10M、12.8M、13M、19.44M、20M和20.48M，該型號可以配置為提供卓越的性能，短期穩定性達到5x10 -12，溫度穩定性為1x10-9，日老化率為5x10 - 10.包裝尺寸為22 x25 x 12.7毫米
OH300系列提供LVCMOS、HCMOS或正弦輸出以及電子頻率調諧。 商用溫度范圍內的功耗要求為3W，工業溫度范圍內的功耗要求為4.5W 范圍。高穩定性O(shè)H300系列振蕩器是非常精確的頻率標準，非常適合用于IEEE 1588系統、同步、蜂窩基站、3E層、VSAT和測試設備應用。
高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
Connor-Winfield的新IEEE 1588 OCXO提供了出色的頻率穩定性和老化
Connor-Winfield的新型高穩定性SMD OH300系列OCXO晶振提供了支持IEEE 1588系統要求的出色能力。這種基于SC晶體的設計使短期穩定性最大化， 溫度范圍內的頻率穩定性和極低的老化率。提供標準頻率，比如5M， 10M、12.8M、13M、19.44M、20M和20.48M，該型號可以配置為提供卓越的性能，短期穩定性達到5x10 -12，溫度穩定性為1x10-9，日老化率為5x10 - 10.包裝尺寸為22 x25 x 12.7毫米
OH300系列提供LVCMOS、HCMOS或正弦輸出以及電子頻率調諧。 商用溫度范圍內的功耗要求為3W，工業溫度范圍內的功耗要求為4.5W 范圍。高穩定性O(shè)H300系列振蕩器是非常精確的頻率標準，非常適合用于IEEE 1588系統、同步、蜂窩基站、3E層、VSAT和測試設備應用。
高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
功能和配置
•頻率范圍：5至40MHz
•OCXO固定頻率
•OCVCXO電壓控制頻率貼片石英晶振
•3.3VDC至5.0VDC操作
•可用頻率穩定性：±10ppb，±20ppb，±50ppb，
•可用溫度范圍：0?至70?C，-20℃至70℃，-20℃至75℃，-40℃至70℃，-40℃至85℃
•可用溫度范圍：0?至70?C，-20℃至70℃，-20℃至75℃，-40℃至70℃，-40℃至85℃
•低相位噪聲/相位抖動
•CMOS輸出邏輯或純正弦
•SMT封裝：22x25x12.7毫米
•符合RoHS標準/無鉛
高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
高穩定性SMD OCXO振蕩器OH300-60503CF-024.576M適合用于IEEE 1588系統6G晶振
| 原廠代碼 | 進口晶振 | 型號 | 頻率 | 工作溫度 | 包裝/封裝 |
| OH300-71003SV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CV-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61005CV-030.72M | ConnorWinfield晶振 | OH300 | 30.72MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-71003SV-100.0M | ConnorWinfield晶振 | OH300 | 100MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-70503CF-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CF-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CF-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-70503CF-024.576M | ConnorWinfield晶振 | OH300 | 24.576MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-012.8M | ConnorWinfield晶振 | OH300 | 12.8MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-60503CF-024.576M | ConnorWinfield晶振 | OH300 | 24.576MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CF-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CF-010.0M | ConnorWinfield晶振 | OH300 | 10MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-040.0M | 有源晶振 | OH300 | 40MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CV-020.0M | ConnorWinfield晶振 | OH300 | 20MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | -20°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-040.0M | ConnorWinfield晶振 | OH300 | 40MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-50503CV-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CV-025.0M | ConnorWinfield晶振 | OH300 | 25MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-50503CF-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | 0°C ~ 70°C | 7-SMD, No Lead |
| OH300-61003CF-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | -40°C ~ 85°C | 7-SMD, No Lead |
| OH300-61003CV-050.0M | ConnorWinfield晶振 | OH300 | 50MHz | -40°C ~ 85°C | 7-SMD, No Lead |
