- 編號：99675327
- 頻率：32.768KHZ
- 尺寸：3.2*1.5mm
3215mm/G83270025/智能電表專用/32.768KHZ/Diodes/G8
3215mm/G83270025/智能電表專用/32.768KHZ/Diodes/G8,尺寸為3215mm,頻率為32.768KHZ，臺灣進口晶振，百利通亞陶晶振，無源晶體，貼片諧振器，貼片無源晶振，音叉晶體，水晶振動子，32.768KHZ晶振，羅拉模塊晶振，實時...
TXC,NDK,希華.jpg)
3215mm/G83270025/智能電表專用/32.768KHZ/Diodes/G8,尺寸為3215mm,頻率為32.768KHZ，臺灣進口晶振，百利通亞陶晶振，無源晶體，貼片諧振器，貼片無源晶振，音叉晶體，水晶振動子，32.768KHZ晶振，羅拉模塊晶振，實時時鐘晶振，時間顯示設備晶振，智能電表晶振，POS晶振，網絡設備晶振，G83270022無源諧振器。
進口32.768K音叉晶體產品主要應用范圍：實時時鐘，微處理器低功耗參考，待機模式，時間顯示設備，智能電表，POS，網絡等領域。3215mm/G83270025/智能電表專用/32.768KHZ/Diodes/G8.格發TXC,NDK,希華.jpg)

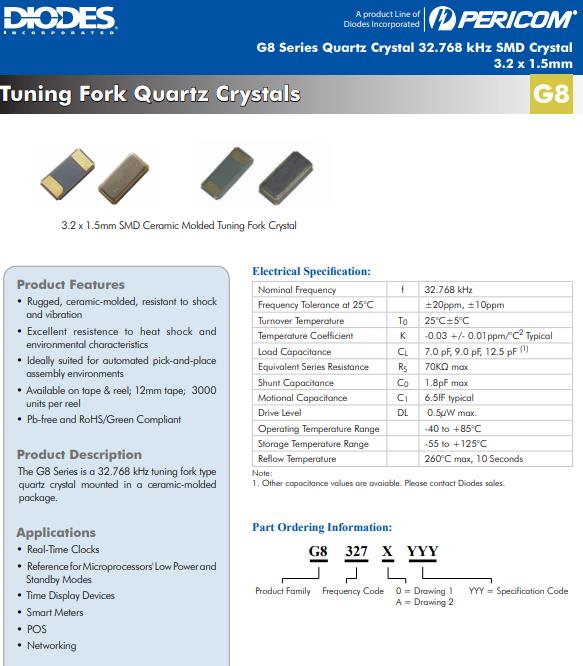

3215mm/G83270025/智能電表專用/32.768KHZ/Diodes/G8 參數表
| Nominal Frequency | f | 32.768 kHz | |||||||||||||
| Frequency Tolerance at 25°C | ±20ppm, ±10ppm | ||||||||||||||
| Turnover Temperature | T0 | 25°C±5°C | |||||||||||||
| Temperature Coefficient | K | -0.03 +/- 0.01ppm/°C2 Typical | |||||||||||||
| Load Capacitance | CL | 7.0 pF, 9.0 pF, 12.5 pF (1) | |||||||||||||
| Equivalent Series Resistance | RS | 70KΩ max | |||||||||||||
| Shunt Capacitance | C0 | 1.8pF max | |||||||||||||
| Motional Capacitance | C1 | 6.5fF typical | |||||||||||||
| Drive Level | DL | 0.5µW max. | |||||||||||||
| Operating Temperature Range | -40 to +85°C | ||||||||||||||
| Storage Temperature Range | -55 to +125°C | ||||||||||||||
| Reflow Temperature | 260°C max, 10 Seconds | ||||||||||||||
G832700258晶振 特點
堅固耐用，陶瓷成型，抗沖擊
和振動
•具有優異的耐熱性和抗沖擊性
環境特征
•非常適合自動取放
裝配環境
•可在磁帶和卷軸;12毫米磁帶;3000
每卷單位數
更多相關臺灣百利通亞陶晶振型號
| 原廠編碼 | 廠家 | 型號 | 頻率 | 頻率穩定度 |
| FH3200025 | Diodes晶振 | SaRonix-eCera™ FH | 32MHz | ±10ppm |
| FW2500025Z | Diodes晶振 | SaRonix-eCera™ FW | 25MHz | ±30ppm |
| G43270018 | Diodes晶振 | SaRonix-eCera™ G4 | 32.768kHz | - |
| FL374WFBR2 | Diodes晶振 | SaRonix-eCera™ FL | 37.4MHz | ±10ppm |
| G13270007 | Diodes晶振 | SaRonix-eCera™ G1 | 32.768kHz | - |
| G13270009 | Diodes晶振 | SaRonix-eCera™ G1 | 32.768kHz | - |
| G93270001 | Diodes晶振 | SaRonix-eCera™ G9 | 32.768kHz | - |
| G23270023 | Diodes晶振 | SaRonix-eCera™ G2 | 32.768kHz | - |
| G23270006 | Diodes晶振 | SaRonix-eCera™ G2 | 32.768kHz | - |
| G23270013 | Diodes晶振 | SaRonix-eCera™ G2 | 32.768kHz | - |
| G43270021 | Diodes晶振 | SaRonix-eCera™ G4 | 32.768kHz | - |
| G33270007 | Diodes晶振 | SaRonix-eCera™ G3 | 32.768kHz | - |
| G83270021 | Diodes晶振 | SaRonix-eCera™ G8 | 32.768kHz | - |
| G43270025 | Diodes晶振 | SaRonix-eCera™ G4 | 32.768kHz | - |
| G83270022 | Diodes晶振 | SaRonix-eCera™ G8 | 32.768kHz | - |
| G43270019 | Diodes亞陶晶振 | SaRonix-eCera™ G4 | 32.768kHz | - |
| G83270023 | Diodes晶振 | SaRonix-eCera™ G8 | 32.768kHz | - |
| G83270025 | Diodes晶振 | SaRonix-eCera™ G8 | 32.768kHz | - |
| G33270010 | Diodes晶振 | SaRonix-eCera™ G3 | 32.768kHz | - |
| FL520WFMT1 | Diodes晶振 | SaRonix-eCera™ FL | 52MHz | ±17ppm |
| FL374WFMR1 | Diodes晶振 | SaRonix-eCera™ FL | 37.4MHz | ±10ppm |
| FL374WFBR1 | Diodes晶振 | SaRonix-eCera™ FL | 37.4MHz | ±10ppm |
| FL260WFMT1 | Diodes晶振 | SaRonix-eCera™ FL | 26MHz | ±17ppm |
| FL384WFIN1 | Diodes晶振 | SaRonix-eCera™ FL | 38.4MHz | ±12ppm |
| FL400WFMR1 | Diodes晶振 | SaRonix-eCera™ FL | 40MHz | ±10ppm |
| FL400WFQA1 | Diodes晶振 | SaRonix-eCera™ FL | 40MHz | ±10ppm |
| FL400WFMT1 | Diodes晶振 | SaRonix-eCera™ FL | 40MHz | ±17ppm |
| FL260WFMR1 | Diodes晶振 | SaRonix-eCera™ FL | 26MHz | ±10ppm |
| G93270002 | Diodes晶振 | SaRonix-eCera™ G9 | 32.768kHz | - |
| G93270004 | Diodes晶振 | SaRonix-eCera™ G9 | 32.768kHz | - |
| FW374WFBR2 | Diodes晶振 | SaRonix-eCera™ FW | 37.4MHz | ±10ppm |
| FW400WFMT1 | Diodes晶振 | SaRonix-eCera™ FW | 40MHz | ±17ppm |
| FW374WFMR1 | Diodes晶振 | SaRonix-eCera™ FW | 37.4MHz | ±10ppm |
| FW384WFIN1 | Diodes晶振 | SaRonix-eCera™ FW | 38.4MHz | ±12ppm |
| FW520WFMT1 | Diodes晶振 | SaRonix-eCera™ FW | 52MHz | ±17ppm |
| FW260WFMT1 | Diodes晶振 | SaRonix-eCera™ FW | 26MHz | ±17ppm |
| FW260WFMR1 | Diodes晶振 | SaRonix-eCera™ FW | 26MHz | ±10ppm |
| FW374WFBR1 | Diodes晶振 | SaRonix-eCera™ FW | 37.4MHz | ±10ppm |
| FW400WFMR1 | Diodes晶振 | SaRonix-eCera™ FW | 40MHz | ±10ppm |
