石英晶體振蕩器
- 編號：6399946
- 頻率：156.250MHz
- 尺寸：3.2x2.5mm
Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振
Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振，美國進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPC336156.250000I，頻率為：156.250MHz，小體積晶振尺寸：3.2x2.5x1.07mm，CML輸出差分晶振，8墊腳...
TXC,NDK,希華.jpg)
Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振，美國進口晶振，Renesas瑞薩電子晶振，XP系列晶振，編碼為：XPC336156.250000I，頻率為：156.250MHz，小體積晶振尺寸：3.2x2.5x1.07mm，CML輸出差分晶振，8墊腳貼片晶振，石英晶振，有源晶振，差分晶體振蕩器，石英晶體振蕩器，電源電壓3.3V，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，低抖動，低功耗，低電源電壓，超低相位噪聲，低損耗，低耗能，低電平等特點。應用于：通訊設備，物聯網，無線網絡，網絡，以太網，光纖通道，藍牙晶振，路由器，交換機，測量儀器，安防設備等應用。

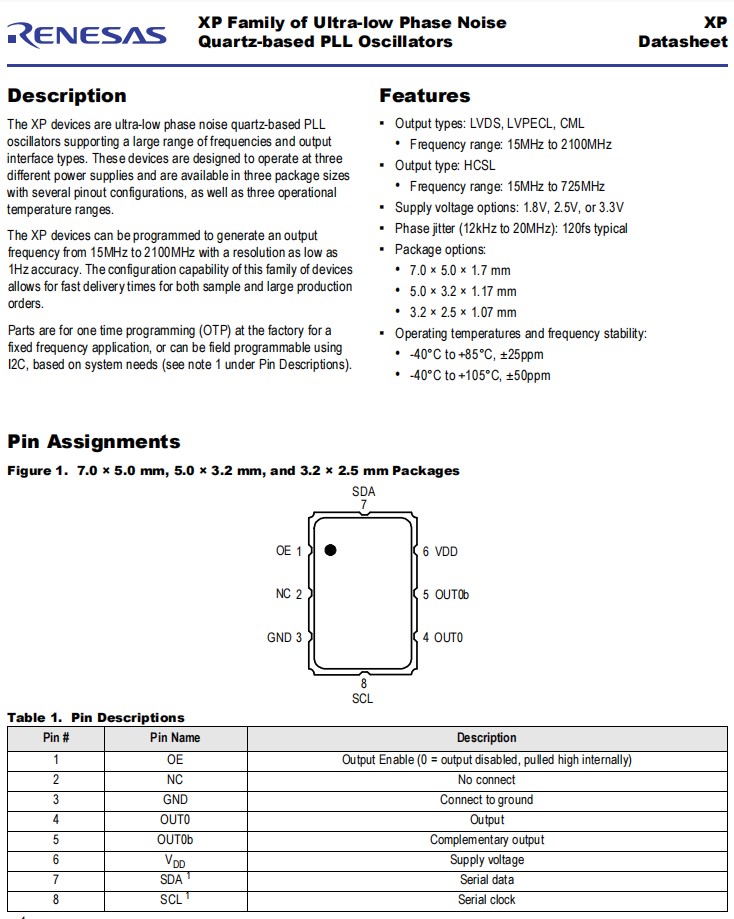

Renesas XP設備是超低相位噪聲的基于石英的PLL振蕩器，支持大范圍的頻率和輸出接口類型。這些設備被設計為操作在三種不同的電源供應，并可在三種包裝尺寸與幾種針形配置，以及三種操作溫度范圍。XP設備可以通過編程產生從15MHz到2100MHz的輸出頻率，分辨率低至1Hz的精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。
格發TXC,NDK,希華.jpg)
Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振，參數表
| Parameter | Test Condition | Minimum | Typical | Maximum | Units | |
| Output Frequency Range | LVDS, LVPECL, CML. | 156.250 | MHz | |||
| HCSL. | 15 | — | 725 | |||
| Frequency Stability | Temperature = -40°C to +85°C. | — | — | ±25 | ppm | |
| Temperature = -40°C to +105°C. | — | — | ±50 | ppm | ||
| Frequency Tolerance (25°C) | Temperature = 25°C. | -15 | ±10 | -15 | ppm | |
| Aging (1st year) | TA = 25°C. | — | — | ±3 | ppm | |
| Aging (10 years) | TA = 25°C. | — | — | ±10 | ppm | |
| Output Load | LVDS. | Differential. | — | 100 | — | Ω |
| LVPECL. | VDD - 2.0V. | — | 50 | — | ||
| HCSL. | To GND. | — | 50 | — | ||
| Start-up Time | Output valid time after VDD meets minimum specified level. | — | 5 | — | ms | |
| Output Rise Time | LVDS. |
20% – 80%, 156.25MHz |
— | 299 | 400 | ps |
| LVPECL. | — | 287 | 400 | |||
| HCSL. | — | 306 | 400 | |||
| CML | — | 301 | 400 | |||
| Output Fall Time | LVDS. |
20% – 80%, 156.25MHz |
— | 279 | 400 | ps |
| LVPECL. | — | 274 | 400 | |||
| HCSL. | — | 284 | 400 | |||
| CML | — | 279 | 400 | |||
| Output Clock Duty Cycle | LVDS. | 156.25MHz | 48 | — | 52 | % |
| LVPECL. | 156.25MHz | 48 | — | 52 | ||
| HCSL. | 156.25MHz | 48 | — | 52 | ||
| CML | 156.25MHz | 48 | — | 52 | ||
| Output Enable/Disable Time | — | — | — | 1 | — |
ms |

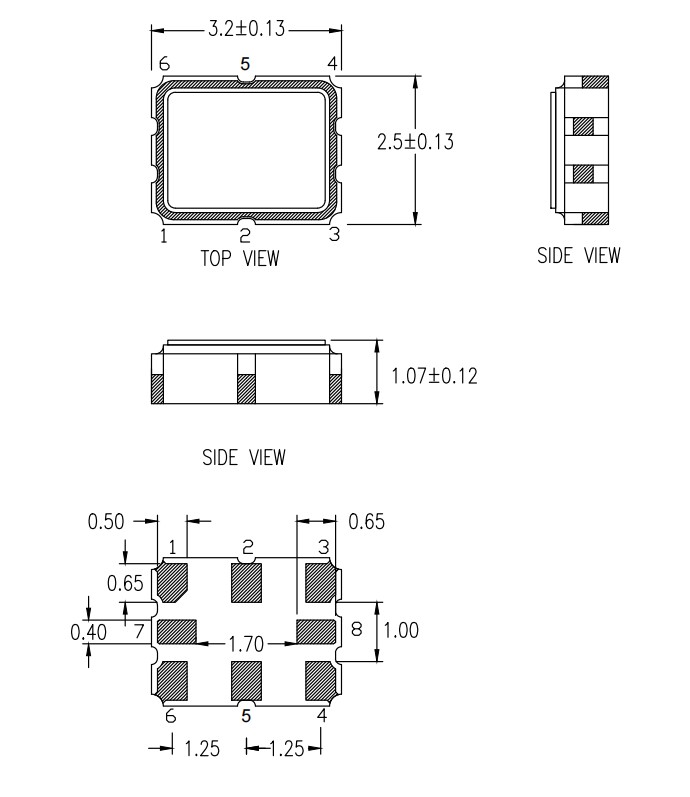

Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振，尺寸圖
Renesas低抖動晶振,XPC336156.250000I,CML輸出石英晶振
產品特點：
輸出類型：LVDS、LVPECL、CML
頻率范圍：15MHz至2100MHz
輸出類型：HCSL
頻率范圍：15MHz至725MHz
電源電壓選項：1.8V、2.5V或3.3V貼片晶振
相位抖動（12kHz至20MHz）：典型值為120fs
程序包選項：7.0×5.0×1.7毫米，5.0×3.2×1.17毫米，3.2×2.5×1.07毫米
工作溫度和頻率穩定性：-40°C至+85°C，±25ppm，-40°C至+105°C，±50ppm
| 石英振蕩器 | 品牌 | 描述 | 系列 | 頻率 | 輸出 |
| XPC736156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML |
| XPC736174.703000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 174.703 MHz | CML |
| XPC316800.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 800 MHz | CML |
| XPC336212.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 212.5 MHz | CML |
| XPC536020.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 20 MHz | CML |
| XPC736174.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 174 MHz | CML |
| XPC736625.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 625 MHz | CML |
| XPC316156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML |
| XPC736100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 100 MHz | CML |
| XPM736625.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPM | 625 MHz | - |
| XPC336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML |
| XPC536156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML |
| XPM536625.000000I | Renesas晶振 | XPM536625.00000 PROGRAMMABLE XO | XPM | 625 MHz | - |
| XPC735G11.328120K | Renesas晶振 | XTAL OSC XO 1.61132812 GHZ CML | XPC | 1.61132812 GHz | CML |
| XPC725100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ CML SMD | XPC | 100 MHz | CML |
| XPC336625.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 625 MHz | CML |
| XPC526156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML |
| XPC316999.990000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 999.99 MHz | CML |
| XPC516156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML |
| XPC536040.000000I | 有源晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 40 MHz | CML |
| XPC336950.000000I | Renesas晶振 | XTAL OSC XO 950.0000MHZ CML SMD | XPC | 950 MHz | CML |
| XPC735156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML |
| XPC716156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML |
| XPC716025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XPC | 25 MHz | CML |
| XPC736G11.381200I | Renesas晶振 | XTAL OSC XO 1.6113812 GHZ CML | XPC | 1.6113812 GHz | CML |
| XPC736G11.328120I | Renesas晶振 | XTAL OSC XO 1.61132812 GHZ CML | XPC | 1.61132812 GHz | CML |
| XPC335025.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 25 MHz | CML |
| XPC315156.250000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML |
| XPC315808.123456K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 808.123456 MHz | CML |
| XPC335050.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 50 MHz | CML |
