EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振

編號：20282949
頻率：622.080000 MHz
尺寸：7.0x5.0x1.5mm

EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振，日本進口晶振，EPSON愛普生晶振，型號VG7050EAN，編碼為：X1G0045411003，頻率為：622.080000MHz，小體積晶振尺寸：7.0x5.0x1.5mm，8腳貼片晶...

EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振，日本進口晶振，EPSON愛普生晶振，型號VG7050EAN，編碼為：X1G0045411003，頻率為：622.080000 MHz，小體積晶振尺寸：7.0x5.0x1.5mm，8腳貼片晶振，壓控晶振，可編程電壓控制振蕩器（VCXO），LV-PECL輸出差分晶振，有源晶振，石英晶振，石英晶體振蕩器，無鉛環保晶振，具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低耗能，低電源電壓，滿足低消費電流的特性，VG7050EAN貼片石英晶振應用于：通訊設備，物聯網，智能手機、路由器，交換機，對講機、光纖通道，以太網，數碼產品，光電技術等通訊設備及各種頻率控制設備。

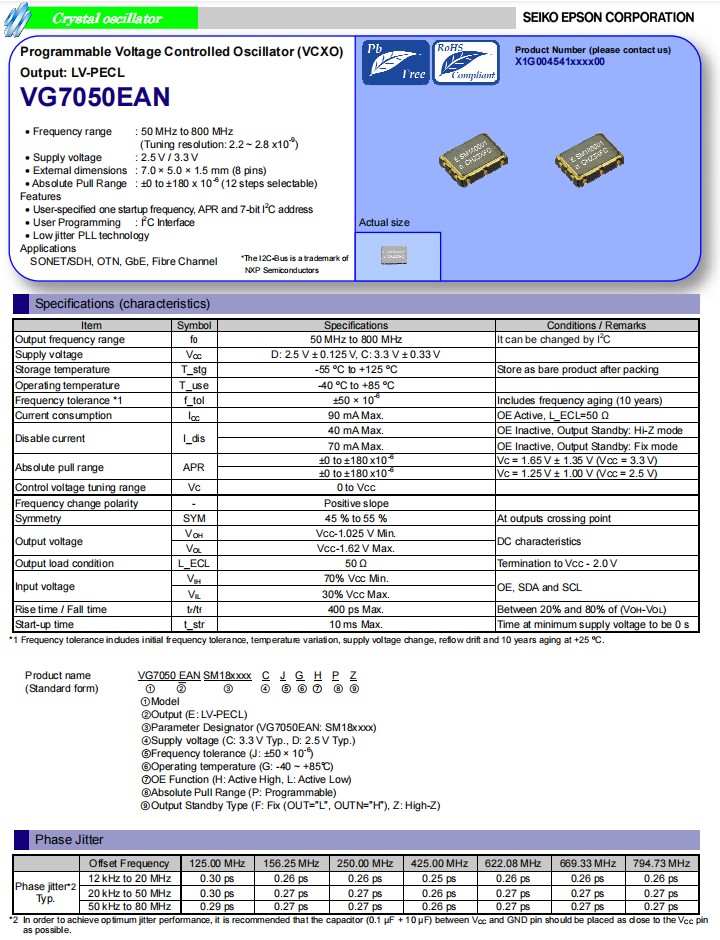

EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振，參數表

Item	Symbol	VG7050EAN	Conditions / Remarks
Output frequency range	f0	622.080000 MHz	It can be changed by I2C
Supply voltage	VCC	D: 2.5 V ± 0.125 V, C: 3.3 V ± 0.33 V
Storage temperature	T_stg	-55 ºC to +125 ºC	Store as bare product after packing
Operating temperature	T_use	-40 ºC to +85 ºC
Frequency tolerance *1	f_tol	±50 × 10-6	Includes frequency aging (10 years)
Current consumption	ICC	90 mA Max.	OE Active, L_ECL=50Ω
Disable current	I_dis	40 mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70 mA Max.	OE Inactive, Output Standby: Fix mode
Absolute pull range	APR	±0 to ±180 x10-6	VC = 1.65 V ± 1.35 V (VCC = 3.3 V)
Absolute pull range	APR	±0 to ±180 x10-6	VC = 1.25 V ± 1.00 V (VCC = 2.5 V)
Control voltage tuning range	VC	0 to VCC
Frequency change polarity	-	Positive slope
Symmetry	SYM	45 % to 55 %	At outputs crossing point
Output voltage	VOH	VCC-1.025 V Min.	DC characteristics
Output voltage	VOL	VCC-1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC - 2.0 V
Input voltage	VIH	70% VCC Min.	OE, SDA and SCL
Input voltage	VIL	30% VCC Max.	OE, SDA and SCL
Rise time / Fall time	tr/tf	400 ps Max.	Between 20% and 80% of (VOH-VOL)
Start-up time	t_str	10 ms Max.	Time at minimum supply voltage to be 0 s

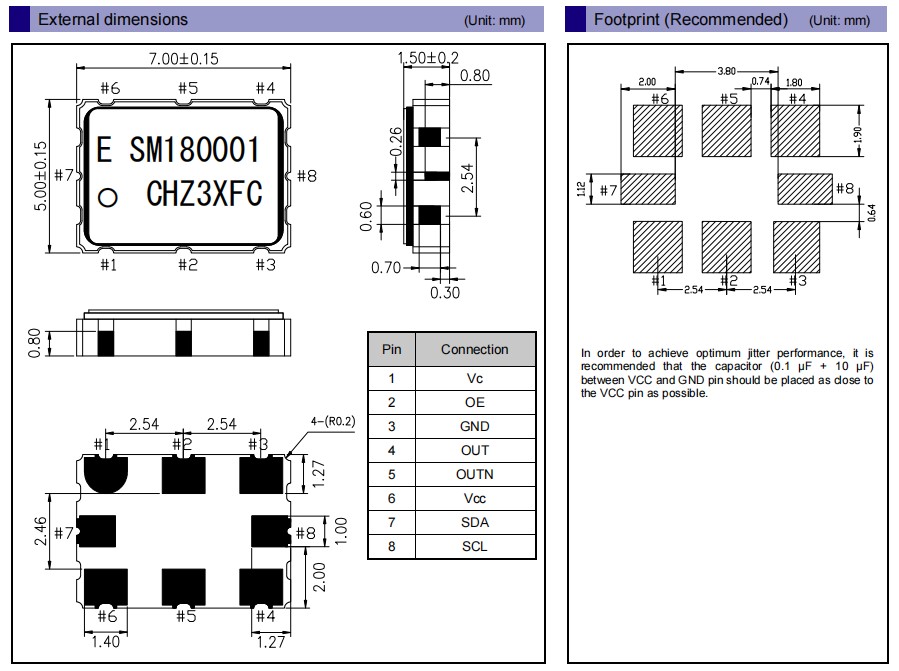

EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振，尺寸圖

EPSON可編程壓控晶振VG7050EAN,X1G0045411003,LV-PECL輸出6G光纖通道晶振
差分晶振是普通貼片晶振所不能夠達到的，差分晶振具有低電平，低抖動，低功耗等特性.差分晶振作為目前行業中高要求，高技術石英晶體振蕩器，具有相位低，損耗低的特點，愛普生差分晶振使用于產品中能夠很容易地識別小信號，能夠從容精確地處理雙級信號，對外部電磁干擾(EMI)是高度免疫的，差分石英晶振滿足市場需求，實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性。

有源晶振	型號	頻率	頻率穩定性	尺寸	輸出波形	電壓
X1G0041510003	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0041510004	VG-4513CB	153.600000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0041510007	VG-4513CB	122.880000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0041510009	VG-4513CB	153.600000 MHz	GFCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0041510013	VG-4513CB	125.000000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0041510016	VG-4513CB	156.250000 MHz	GGCT	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0045411003	VG7050EAN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045411005	VG7050EAN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	進口晶振	2.970 to 3.630 V
X1G0045411007	VG7050EAN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045510003	VG7050EBN	698.812335 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045510004	VG7050EBN	794.727753 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045510007	VG7050EBN	693.482990 MHz	CJGHBZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045510008	VG7050EBN	698.812300 MHz	CJGHCZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611003	VG7050ECN	622.080000 MHz	CJGLPZ	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611005	VG7050ECN	622.080000 MHz	CJGHPF	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
X1G0045611007	VG7050ECN	622.080000 MHz	CJGLPF	7.00 x 5.00 x 1.50 mm	LV-PECL	2.970 to 3.630 V
