首頁進口晶振愛普生晶振X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

編號：6933638
頻率：20MHZ
尺寸：7.0*5.0mm

X1G0039010095TG-5501CACMOS20MHZ微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡...

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡同步晶振，網絡設備晶振，智能家居晶振，無線電子晶振，藍牙音響晶振，羅拉模塊晶振，微波BTS專用晶振，X1G0039010090晶振，X1G0039010089晶振。
貼片有源晶振產品主要用于網絡同步，Stratum3，微波BTS，羅拉模塊，智能家居，無線電子等領域。X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

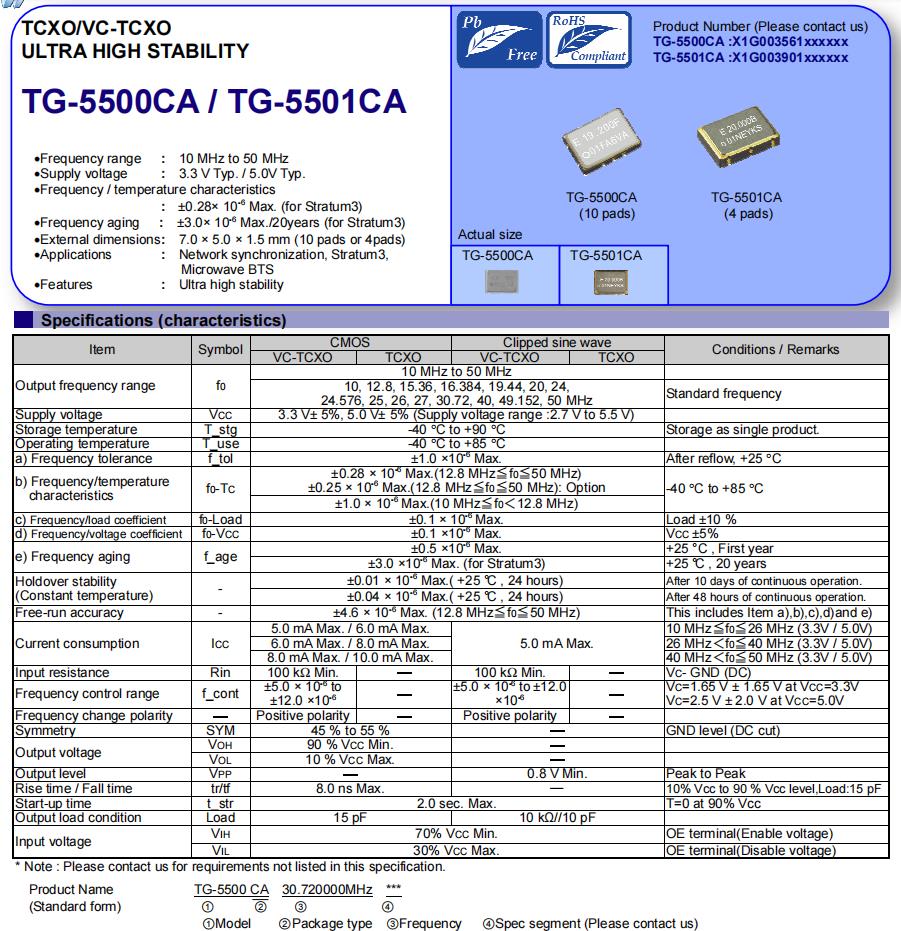

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用 參數表

Item

Symbol

CMOS

Clipped sine wave

Conditions / Remarks

VC-TCXO

TCXO

VC-TCXO

TCXO

Output frequency range

10 MHz to 50 MHz

10, 12.8, 15.36, 16.384, 19.44, 20, 24,
24.576, 25, 26, 27, 30.72, 40, 49. 152, 50 MHz

Standard frequency

Supply voltage

VCC

3.3 V± 5%, 5.0 V± 5% (Supply voltage range :2.7 V to 5.5 V)

Storage temperature

T_stg

-40 °C to +90 °C

Storage as single product.

Operating temperature

T_use

-40 °C to +85 °C

a) Frequency tolerance

f_tol

± 1.0 ×10-6 Max.

After reflow, +25 °C

b) Frequency/temperature
characteristics

0-TC

±0.28 × 10-6 Max.(12.8 MHz元f0 元50 MHz)
±0.25 × 10-6 Max.(12.8 MHz元f0 元50 MHz): Option

-40 °C to +85 °C

±1.0 × 10-6 Max.(10 MHz元f0 <12.8 MHz)

c) Frequency/load coefficient

0-Load

±0. 1 × 10-6 Max.

Load ±10 %

d) Frequency/voltage coefficient

0-VCC

±0. 1 ×10-6 Max.

VCC ±5%

e) Frequency aging

f_age

±0.5 ×10-6 Max.

+25 °C , First year

±3.0 ×10-6 Max. (for Stratum3)

+25 °C , 20 years

Holdover stability
(Constant temperature)

±0.01 × 10-6 Max.( +25 °C , 24 hours)

After 10 days of continuous operation .

±0.04 × 10-6 Max.( +25 °C , 24 hours)

After 48 hours of continuous operation .

Free-run accuracy

±4.6 × 10-6 Max. (12.8 MHz元f0 元50 MHz)

This includes Item a),b),c),d)and e)

Current consumption

ICC

5.0 mA Max. / 6.0 mA Max.

5.0 mA Max.

10 MHz元f0 元26 MHz (3.3V / 5.0V)

6.0 mA Max. / 8.0 mA Max.

26 MHz

8.0 mA Max. / 10.0 mA Max.

40 MHz

Input resistance

Rin

100 k? Min.

VC- GND (DC)

Frequency control range

f_cont

±5.0 × 10-6 to
±12.0 ×10-6

±5.0 × 10-6 to ±12.0
×10-6

VC=1.65 V ± 1.65 V at VCC=3.3V
VC=2.5 V ± 2.0 V at VCC=5.0V

Frequency change polarity

Positive polarity

Symmetry

SYM

45 % to 55 %

GND level (DC cut)

Output voltage

VOH

90 % VCC Min.

VOL

10 % VCC Max.

Output level

VPP

0.8 V Min.

Peak to Peak

Rise time / Fall time

tr/tf

8.0 ns Max.

10% Vcc to 90 % Vcc level,Load:15 pF

Start-up time

t_str

2.0 sec. Max.

T=0 at 90% Vcc

Output load condition

Load

15 pF

10 kQ// 10 pF

Input voltage

VIH

70% VCC Min.

OE terminal(Enable voltage)

VIL

30% VCC Max.

OE terminal(Disable voltage)

X1G0039010095晶振特點
頻率范圍:10mhz~50mhz

•供電電壓:3.3 V/ 5.0V類型

•頻率/溫度特性

±0.28×10-6(Stratum3)

頻率老化:±3.0×10-6 Max。/20年(第3層)

•外部尺寸:7.0×5.0×1.5 mm(10墊或4墊)

•特點:超高穩定性

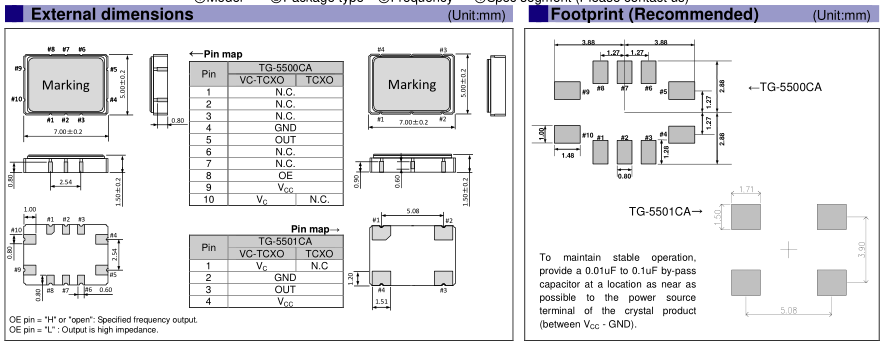

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用 尺寸圖

更多相關愛普生晶振型號

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	F.Tol@25°C	Ope Temperature
X1G0035610204	TG-5500CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0035810029	TG-5021CG	33.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0035810035	TG-5021CG	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0035810039	TG-5021CG	30.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G0038210044	TG-5021CE	24.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.850 to 3.150 V	+/-1.5 ppm	-40 to +85 °C
X1G0038310001	TG-5035CE	19.200000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038310004	TG-5035CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.650 to 3.040 V	+/-1.0 ppm	-30 to +85 °C
X1G0038310005	TG-5035CE	16.368000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.650 to 3.040 V	+/-1.0 ppm	-30 to +85 °C
X1G0038310014	TG-5035CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.800 to 3.000 V	+/-2.0 ppm	-40 to +85 °C
X1G0038310025	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-40 to +85 °C
X1G0038310034	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.900 to 3.100 V	+/-2.0 ppm	-20 to +85 °C
X1G0038310035	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-1.5 ppm	-40 to +85 °C
X1G0038310038	TG-5035CE	16.368000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.400 to 2.600 V	+/-1.5 ppm	-40 to +85 °C
X1G0038310047	TG-5035CE	19.200000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	3.135 to 3.465 V	+/-2.0 ppm	-40 to +85 °C
X1G0038310051	TG-5035CE	30.720000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0038310053	TG-5035CE	16.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.600 V	+/-2.0 ppm	-30 to +85 °C
X1G0038310055	TG-5035CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.660 to 2.940 V	+/-1.5 ppm	-40 to +85 °C
X1G0038310056	TG-5035CE	24.576000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.600 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410002	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410004	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C
X1G0038410010	TG-5035CJ	33.600000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-1.5 ppm	-30 to +85 °C
X1G0038410011	TG-5035CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410015	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.5 ppm	-30 to +85 °C
X1G0038410017	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C
X1G0038410026	TG-5035CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410027	TG-5035CJ	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410029	TG-5035CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0038410030	TG-5035CJ	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.600 to 3.000 V	+/-2.0 ppm	-40 to +85 °C
X1G0038410033	TG-5035CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-40 to +85 °C
X1G0038410034	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0038410040	TG-5035CJ	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.600 to 3.000 V	+/-2.0 ppm	-40 to +85 °C
X1G0038410048	TG-5035CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0038410052	TG-5035CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C
X1G0038410054	TG-5035CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0038510014	TG-5035CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0038510016	TG-5035CG	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G0038510032	TG-5035CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V	+/-2.0 ppm	-40 to +85 °C
X1G0038510039	TG-5035CG	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 3.300 V	+/-1.0 ppm	-10 to +55 °C
X1G0038510042	TG-5035CG	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0038510043	TG-5035CG	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C
X1G0038510049	TG-5035CG	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0038510051	TG-5035CG	33.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 3.300 V	+/-1.0 ppm	-30 to +85 °C
X1G0038510077	TG-5035CG	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 3.600 V	+/-2.0 ppm	-40 to +85 °C
X1G003851A058	TG-5035CG	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-40 to +85 °C
X1G0039010051	TG-5501CA	24.576000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010057	TG-5501CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010083	TG-5501CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010085	TG-5501CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010087	TG-5501CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010089	TG-5501CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	CMOS TCXO振蕩器	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010090	TG-5501CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010091	TG-5501CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010093	TG-5501CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010095	TG-5501CA	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010097	TG-5501CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010098	TG-5501CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010101	TG-5501CA	10.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010102	TG-5501CA	12.800000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010103	TG-5501CA	16.384000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010104	TG-5501CA	19.440000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010107	TG-5501CA	25.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010108	TG-5501CA	26.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010109	TG-5501CA	27.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010200	TG-5501CA	30.720000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010201	TG-5501CA	40.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010202	TG-5501CA	49.152000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010203	TG-5501CA	50.000000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0039010204	TG-5501CA	15.360000 MHz	7.00 x 5.00 x 1.50 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.0 ppm	-40 to +85 °C
X1G0041310004	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310006	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310007	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310008	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310009	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310010	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310011	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310013	TG-5006CJ	16.367667 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310014	TG-5006CJ	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310015	TG-5006CJ	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310016	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310017	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310018	TG-5006CJ	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310026	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.850 to 3.150 V	+/-1.5 ppm	-30 to +85 °C
X1G0041310029	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.600 to 3.000 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310031	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310032	TG-5006CJ	26.635300 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310033	TG-5006CJ	28.974000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310034	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C
X1G0041310036	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 2.940 V	+/-1.5 ppm	-30 to +85 °C
X1G0041310037	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310038	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310041	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-40 to +85 °C
X1G0041310042	TG-5006CJ	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310044	TG-5006CJ	24.576000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0041310049	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010006	TG-5006CE	16.367667 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010008	TG-5006CE	16.369000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010010	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010013	TG-5006CE	16.367667 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010017	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010020	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010023	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010025	TG-5006CE	32.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	1.700 to 3.300 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010026	TG-5006CE	26.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C
X1G0042010032	TG-5006CE	20.000000 MHz	3.20 x 2.50 x 0.90 mm	Clipped sine wave	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C
