- 編號：83485278
- 頻率：32.768KHz
- 尺寸：2.0x1.2x0.38mm
ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振
ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振,ABS06L,無線應用晶振，Abracon晶振，艾博康晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS06L系列，編碼為：ABS06L-32.768KHZ-T，頻率：32.768KHz，負載...
.jpg)
TXC,NDK,希華.jpg)
ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振,ABS06L,無線應用晶振，Abracon晶振，艾博康晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS06L系列，編碼為：ABS06L-32.768KHZ-T，頻率：32.768KHz，負載：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.0x1.2x0.38mm，兩腳貼片晶振，無源晶振，時鐘晶振，石英晶振，SMD晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用程序：智能顯示信用卡，無線應用，通信設備晶振，可穿戴設備晶振，無線通信晶振，測量設備晶振，商業和工業，使用安全技術的信用卡應用。
ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振,ABS06L,無線應用晶振，產品特點：
最低高度kHz包為32.768kHz晶體
0.38毫米高度，適合高密度電路板
陶瓷包裝提供優良的環境和耐熱性
擴展溫度-40°C到+85°C的工業應用
格發TXC,NDK,希華.jpg)
.jpg)
ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振,ABS06L,無線應用晶振,參數表
| Parameters | Minimum | Typical | Maximum | Units | Notes | ||||||||
| Frequency | 32.768 | kHz | |||||||||||
| Operation Mode | Flexural Mode (Tuning Fork) | ||||||||||||
| Operating Temperature | -40 | +85 | ºC | ||||||||||
| Storage Temperature | -55 | +125 | ºC | ||||||||||
| Frequency Tolerance @+25°C | -20 | +20 | ppm | See options | |||||||||
| Temperature Coefficient | -0.04 | -0.03 | -0.02 | ppm/T² | |||||||||
| Turn-over temperature | +20 | +25 | +30 | ºC | |||||||||
| Equivalent series resistance (ESR) | 100 | k? | |||||||||||
| Load capacitance | 12.5 | pF | See options | ||||||||||
| Drive Level | 0.1 | 0.5 | µW | ||||||||||
| Aging (@ 25°C) | -3 | +3 | ppm | First year | |||||||||
| Insulation Resistance | 500 | M? | @ DC 100±15V | ||||||||||
TXC,NDK,希華.jpg)

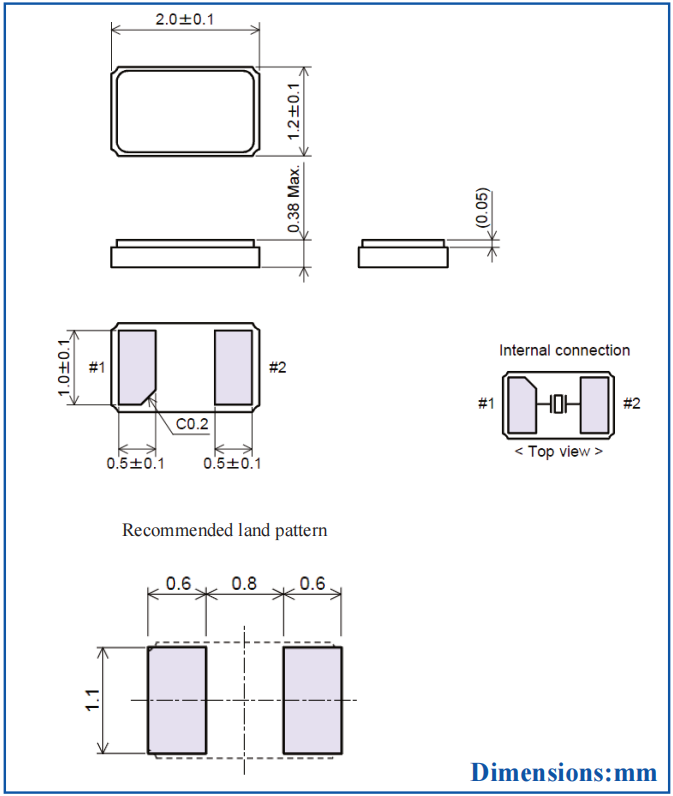

ABS06L-32.768KHZ-T,2012mm,Abracon晶振,輕薄型晶振,ABS06L,無線應用晶振,尺寸圖
格.png)
| 原廠編碼 | 無源晶振 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 藍牙晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
