- 編號：8122751
- 頻率：32.768KHz
- 尺寸：2.0x1.2mm
ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振
ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振,ABS06,兩腳貼片晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS06系列，編碼為：ABS06-107-32.768KHZ-T，頻率：32.768KHz，小體積晶振尺寸：2.0x1.2x0.6m...
.jpg)
TXC,NDK,希華.jpg)
ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振,ABS06,兩腳貼片晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS06系列，編碼為：ABS06-107-32.768KHZ-T，頻率：32.768KHz，小體積晶振尺寸：2.0x1.2x0.6mm，兩腳貼片晶振，無源晶振，石英晶體，時鐘晶振，石英晶體諧振器，ABS06-107-32.768kHz-T調優叉晶體優化了功率敏感設計，需要最小的電鍍負載（4pF）和超低ESR。該設備保證最大ESR為80kΩ，石英晶振，非常適合超低功耗實時時鐘解決方案，需要異常低的功耗。具有超小型，輕薄型，高品質，高質量，耐熱及耐環境特點。廣泛使用于：通信設備，測量設備，無線通信，商業和工業應用。
ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振,ABS06,兩腳貼片晶振，產品特點：
最大0.6mm。高度適合高密度電路板
陶瓷包裝提供優良的環境和耐熱性
擴展溫度-40°C到+85°C的工業應用
格發TXC,NDK,希華.jpg)
.jpg)
ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振,ABS06,兩腳貼片晶振,參數表
| Parameters | Minimum | Typical | Maximum | Units | otes | |||||||
| Frequency | 32.768 | kHz | ||||||||||
| Operation Mode | Flexural Mode (Tuning Fork) | |||||||||||
| Operating Temperature | -40 | +85 | ºC | |||||||||
| Storage Temperature | -55 | +125 | ºC | |||||||||
| Temperature Coefficient: | -0.039 | -0.034 | -0.029 | ppm/T² | ||||||||
| Turn-over temperature: | +20 | +25 | +30 | ºC | ||||||||
| Frequency Stability over temperature | -250 | < ±175 | +250 | ppm |
Relative to the measured frequency at 25ºC ± 3ºC |
|||||||
| Equivalent series resistance (R1) | < 60 | 80 | k? | |||||||||
| Shunt Capacitance (C0) | < 1.50 | 1.70 | pF | |||||||||
| Load capacitance (CL) | 3.90 | 4.00 | 4.10 | pF | See Note#1 | |||||||
| Frequency Tolerance @+25°C | -20 | +20 | ppm |
See Note#2 Tested at 0.5µW |
||||||||
| Drive Level | 0.1 | 0.5 | µW | |||||||||
| Q value | 9000 | 20,000 | ||||||||||
| Aging@25°C±3°C | -3 | 3 | ppm | First year | ||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc ± 15V | |||||||||
TXC,NDK,希華.jpg)

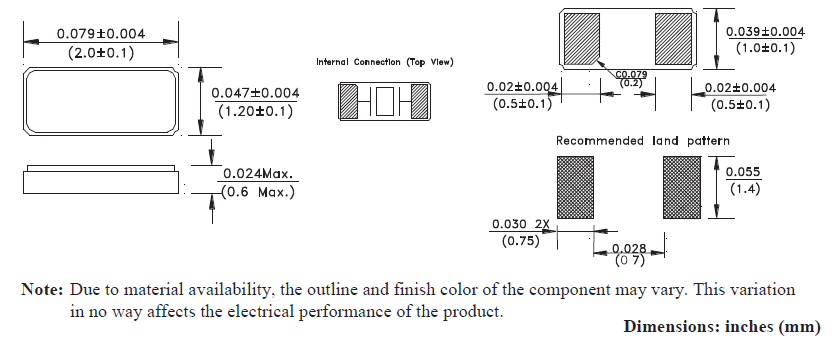

ABS06-107-32.768KHZ-T,2012mm,Abracon實時時鐘晶振,ABS06,兩腳貼片晶振,尺寸圖
格.JPG)
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 艾博康晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
