石英晶體振蕩器
- 編號：96329122
- 頻率：32.768KHz
- 尺寸：1.6x1.0x0.5mm
ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體
ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體,ABS05,可穿戴設備晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS05系列，編碼為：ABS05-32.768KHZ-9-T，頻率：32.768KHz，負載：9pF，精度：20ppm，工作溫...
.jpg)
TXC,NDK,希華.jpg)
ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體,ABS05,可穿戴設備晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS05系列，編碼為：ABS05-32.768KHZ-9-T，頻率：32.768KHz，負載：9pF，精度：20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.0x0.5mm，兩腳貼片晶振，石英晶振，無源晶振，手表晶體，SMD晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用程序：智能顯示信用卡，使用廣泛的通信，測量設備晶振，無線通信，可穿戴設備晶振，藍牙模塊晶振，商業和工業應用。
ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體,ABS05,可穿戴設備晶振，產品特點：
提供最小的32.768KHz封裝SMD晶振
0.5mm高度，非常適合高密度電路板
陶瓷包裝提供卓越的環保性和耐熱性
工業應用的擴展溫度-40°C至+85°C
格發TXC,NDK,希華.jpg)
.jpg)

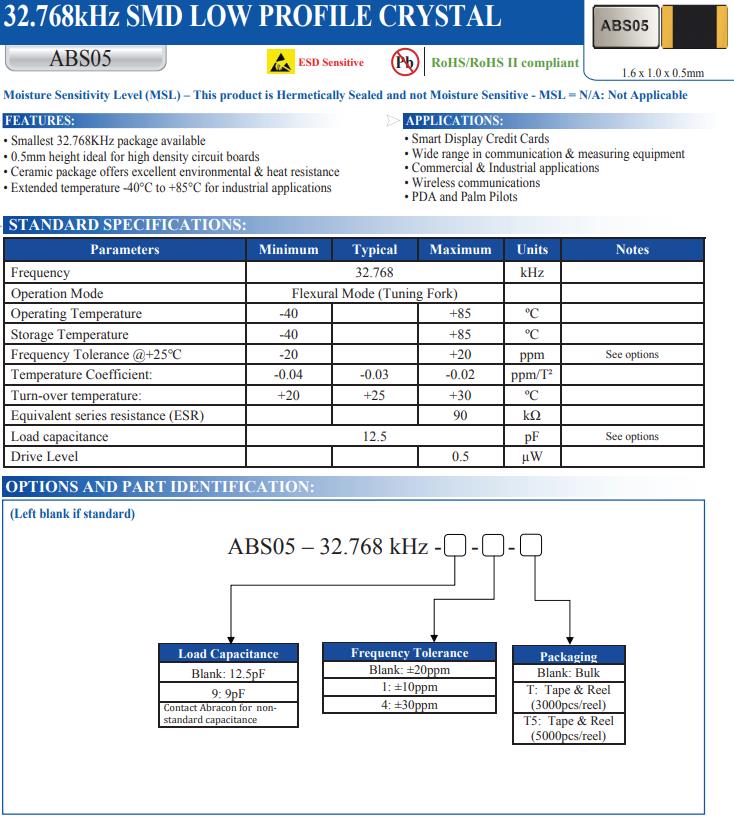

ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體,ABS05,可穿戴設備晶振,參數表
| Parameters | Minimum | Typical | Maximum | Units | Notes | ||||||||||
| Frequency | 32.768 | kHz | |||||||||||||
| Operation Mode | Flexural Mode (Tuning Fork) | ||||||||||||||
| Operating Temperature | -40 | +85 | ºC | ||||||||||||
| Storage Temperature | -40 | +85 | ºC | ||||||||||||
| Frequency Tolerance @+25°C | -20 | +20 | ppm | See options | |||||||||||
| Temperature Coefficient: | -0.04 | -0.03 | -0.02 | ppm/T² | |||||||||||
| Turn-over temperature: | +20 | +25 | +30 | ºC | |||||||||||
| Equivalent series resistance (ESR) | 90 | k? | |||||||||||||
| Load capacitance | 12.5 | pF | See options | ||||||||||||
| Drive Level | 0.5 | µW | |||||||||||||
TXC,NDK,希華.jpg)

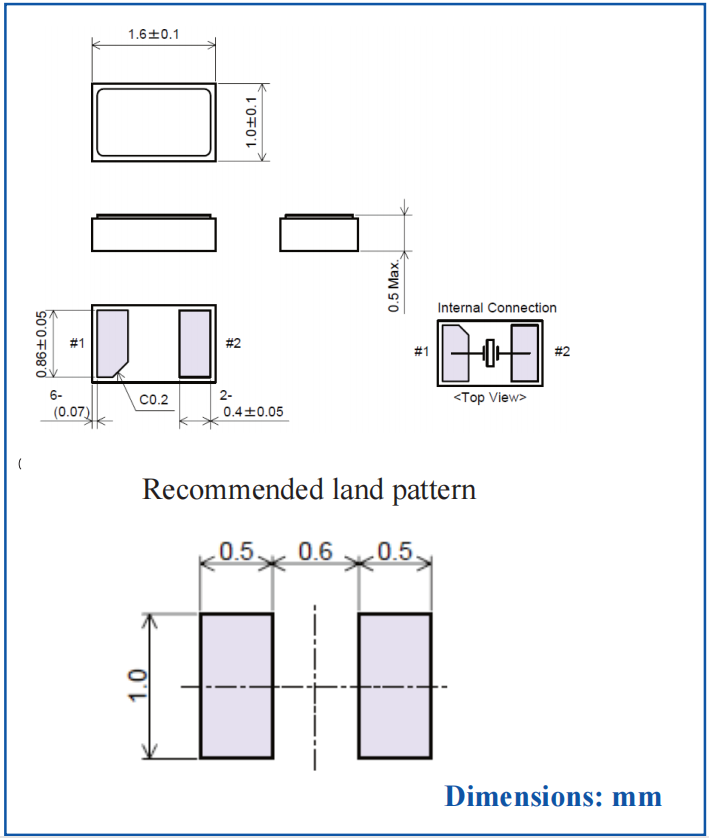

ABS05-32.768KHZ-9-T,1610mm,Abracon品牌,SMD晶體,ABS05,可穿戴設備晶振,尺寸圖
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 音叉晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
